Choosing the right dosing system ensures accurate fertilizer and chemical application, preventing crop damage and reducing operational overhead.
Uses a centrifugal dosing pump in conjunction with a flow meter to dose out of the tank into the mainline.
Pressure variations significantly alter dosing volume. Any build-up on the flow meter ball disrupts reading accuracy.
Flow meter and pump impeller are sensitive to fertilizers, poisons, and chlorine, leading to frequent replacement costs.
An electric motor drives an eccentric shaft driving a piston inside a pump head under vacuum seal.
Maintains constant volume calibration regardless of point-of-dosing pressure fluctuations.
Recommended for clean industrial dosing applications void of abrasive field impurities.
Electrically driven diaphragm pump operating on positive displacement principle.
The diaphragm is impervious to chemical crystallization or field debris, drastically cutting downtime.
Uses standard off-the-shelf electric motors and simple percentage dial control.
Calculate required dosing capacity: (Irrigation Area in ha × Application per ha in Litres) ÷ Application Period in Hours.
Determine mainline pressure at point of injection. Diaphragm pumps operate up to 8 Bar; Piston pumps suit >8 Bar.
Standard pumps suit liquid fertilizers, organic mixes, and low-concentration chlorine. Custom Ertalite, SUS, or Teflon ends available.
Available in Single Phase (220V) or Three Phase (380V). Solar-powered dosing packages available for remote un-electrified sites.
Engineered specifically for harsh agricultural conditions and zero-downtime performance.

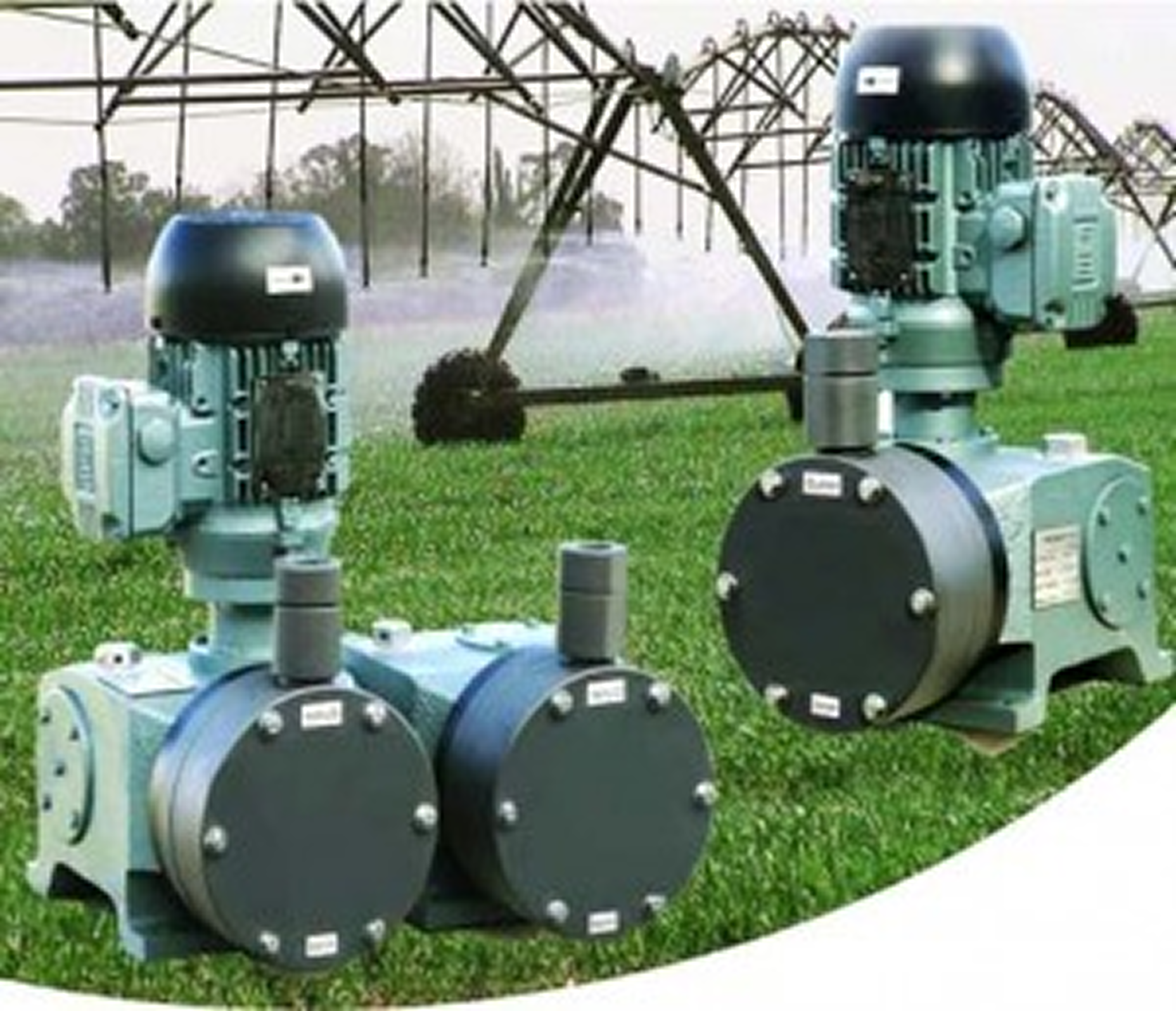

Available with both diaphragm or heavy-duty piston heads.
Only 2 gearbox ratios across 40+ volume capacities (10 L/hr to 4800 L/hr), guaranteeing spare parts availability.
Modular design allows field volume upgrades via simple pump head or gear ratio adjustments.
Standard off-the-shelf electric motors can be replaced anywhere without proprietary vendor markups.
Positive displacement ensures 100% immunity to mainline pressure or flow fluctuations.
Liquid-ends can run dry for periods without burning out or causing motor damage.
Supplied complete: Chemical inline filter, anti-siphon valve, quick-coupling, DOL starter, and piping.
