The Senter 360 Center Pivot Irrigation System is engineered for long-term performance in any agricultural field. With three internal cross braces per side (four on high-profile models), it delivers exceptional strength, stability, and durability, handling radial, vertical, and horizontal loads with ease, even under demanding farming conditions.
Low maintenance design: Stainless steel cable conduit seals and highly durable riser pipe seals ensure minimal maintenance and long service life.
Standard pivot flex: Included with every system, ensuring a smooth and reliable connection to the first tower.
Locally designed control panels: Proudly South African–built mechanical and electronic control panels use standard 230V circuits. Each modular panel allows for easy upgrades and dependable control over your irrigation system.
Senter 360 spans are among the strongest irrigation spans in South Africa, providing outstanding reliability without unnecessary weight.
Up to 11 pipe trusses per 57.6m span deliver maximum structural integrity.
20mm truss rods offer exceptional support and long-term stability.
Each overhang pipe includes dedicated support and back cables for perfect balance and durability.
6.4m pipe lengths simplify transport and on-site installation, reducing setup time.

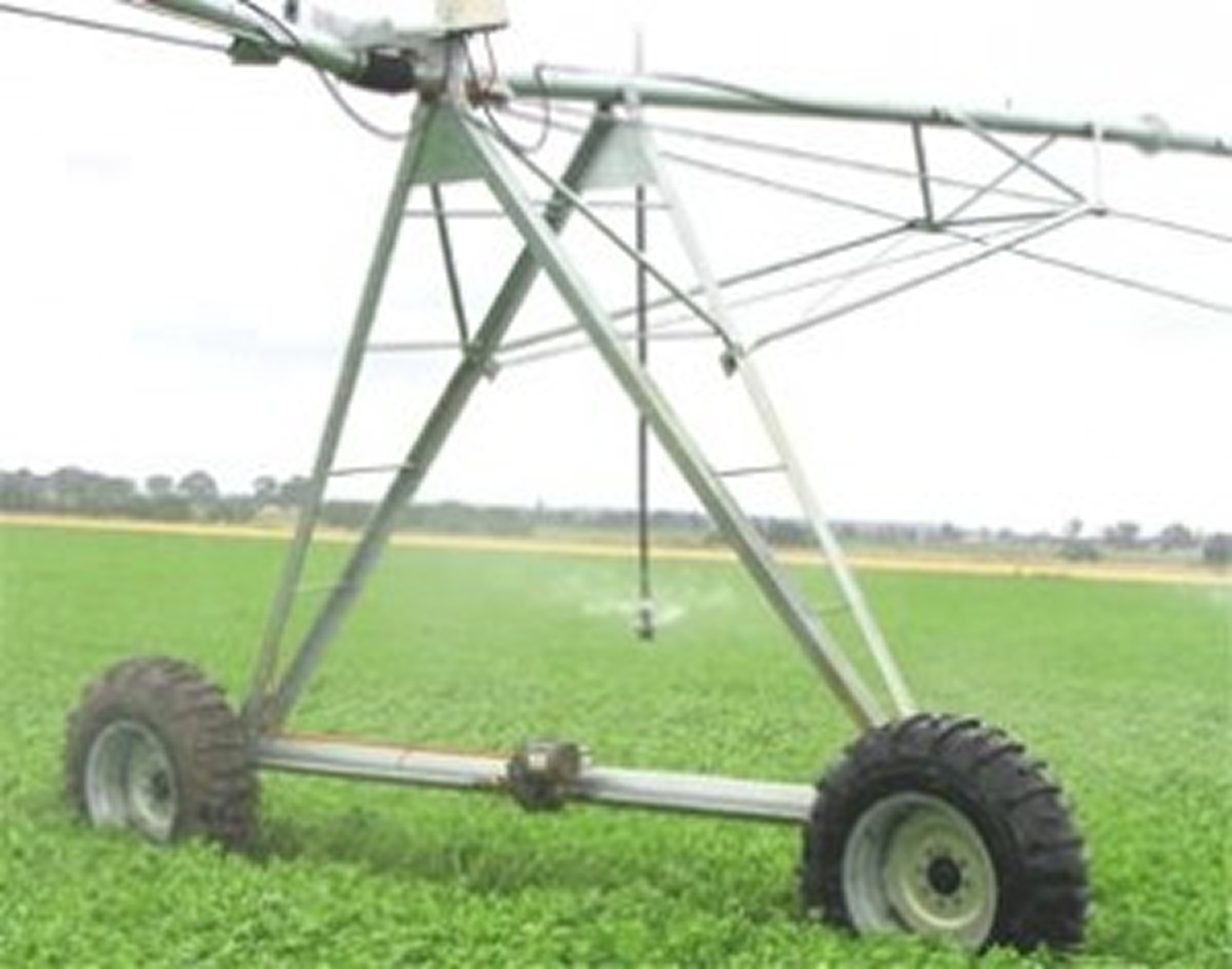

Designed to perform in the toughest agricultural environments, the Senter 360 drive unit and base beam provide unmatched stability and strength.
The 4.5m heavy-duty base beam (5.9m for high-profile models) ensures steady operation on uneven terrain and in high winds.
Built from 100x75x6 angle iron, reinforced with horizontal and diagonal braces for superior rigidity.
Ball & socket joints between spans prevent load transfer from one tower to another, protecting the structure and ensuring smoother operation.
Every Senter 360 Center Pivot is built to last, combining precision engineering, premium materials, and local South African innovation to deliver reliable irrigation performance season after season.

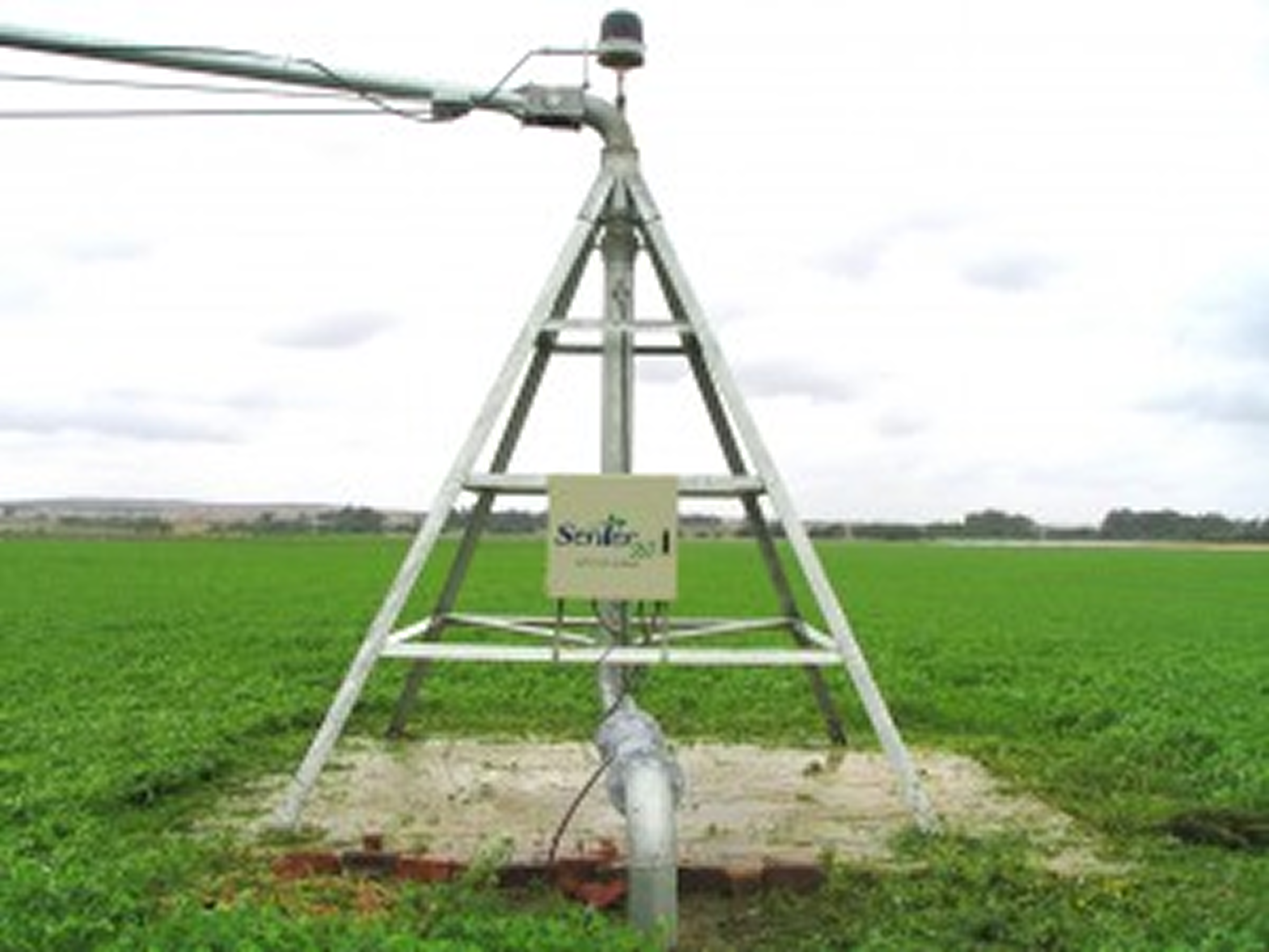

Built for reliability and performance in every condition.
Heavy-duty pivot legs: Manufactured from 90x90x8 angle iron for superior load support.
Cross braces: 70x70x6 angle iron for added strength and stability.
Configuration options: Fixed structure or towable skids for flexible operation.
Optional extras:
4-wheel towable system for daily relocation.
100mm tractor-mount quick tow pivot for one- or two-tower electric or water-driven systems.
Strong, flexible, and maintenance-friendly, ensuring smooth operation for years.
External ball & socket joints prevent operating loads from transferring between towers.
Flexible rubber boots are easily replaced — no tower lifting required.

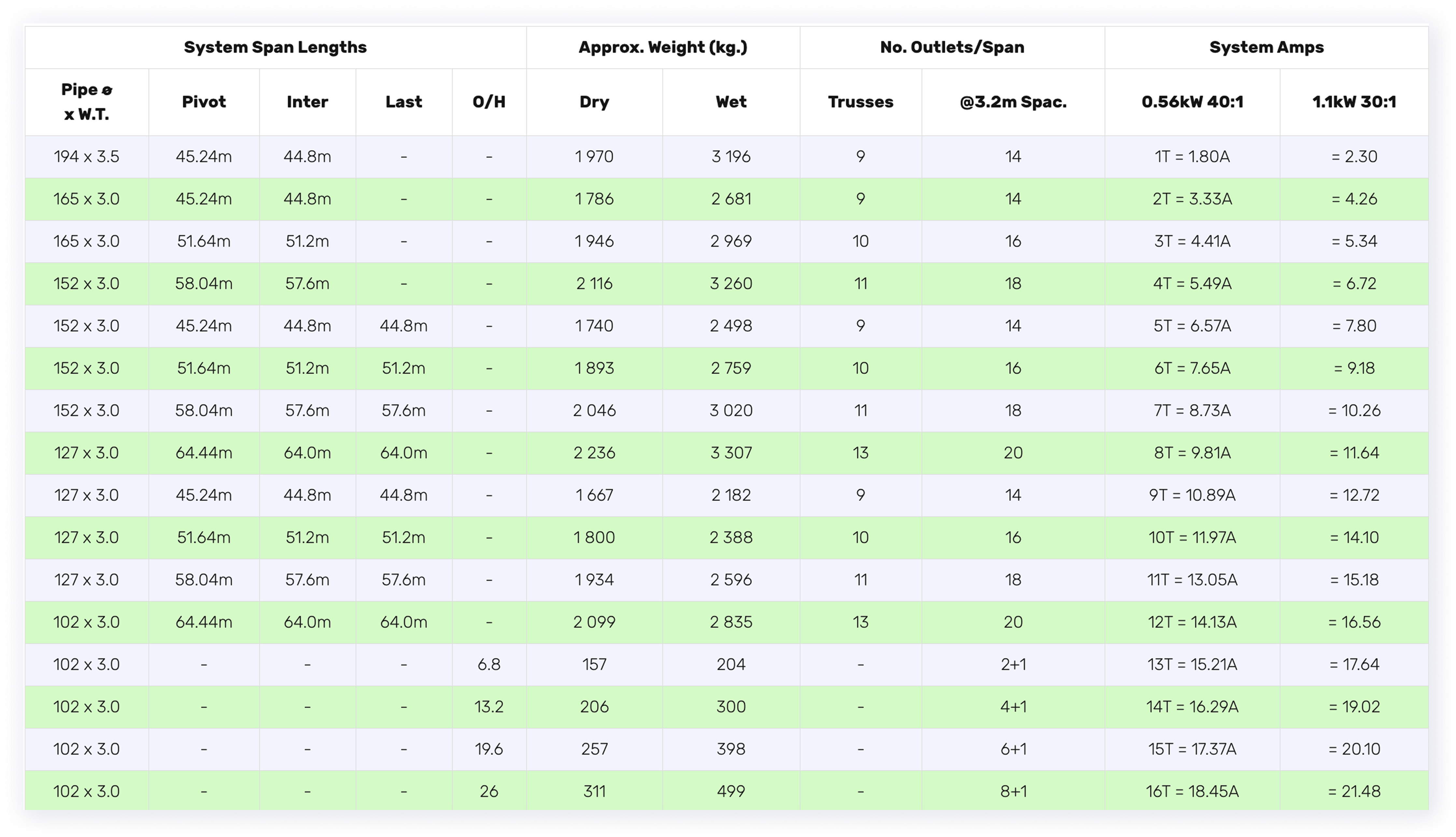

Multiple span lengths and diameters available to fit every irrigation need.
Precision-engineered for lasting stability.
Supports & spreaders: 38 x 2.5mm structural pipe.
Truss rods: 20mm in diameter for consistent strength.
Designed to maintain perfect alignment and load balance across the system.
Tough, reliable, and built to handle South African terrain.
Base beam:
Standard: 1.5m x 165mm x 3mm.
High-profile: 5.9m x 165mm x 3.5mm.
Drive legs: 100x75x6 angle iron with diagonal bracing for rigidity.
Reinforced connection between beam and span for maximum durability.
Powerful performance with minimal maintenance.
Motor options:
0.56kW (40:1) or 1.1kW (30:1) three-phase 400V 50Hz motors.
Gearboxes:
50:1 ratio with 57.15mm output shafts.
Double lip oil seals and external seal savers for longer service life.
Expansion chamber with bellows-type diaphragm (standard).
Maintenance-free driveline universals with soft-start rubber inserts to extend gearbox life.
Simple, smart, and locally designed for full reliability.
Standard manual control with push-button and toggle switches.
Electronic upgrades available for advanced automation.
Modular panel design allows easy upgrades and quick servicing.
Operates on 400V 50Hz, 3-phase, 4-wire power with integrated transformer.
Main power: 400V 50Hz, 3-phase, 4-wire with 400/24V transformer.
Control power: 24V AC with 5A transformer.
Speed regulation: 3-speed selection (33%, 66%, 100%).
Safety switches: 3 safety limit switches for reliable operation.
Over-watering timer: 0–60 minutes with automatic shut-off.
Run light indicator: Visual status of system operation.
Low-pressure shutdown: Protects system from damage.
Automatic pressure start: Resumes operation when pressure is restored.
End-of-field stop: Optional auto-reverse or stop function.
AP protection: IP55 rated for dust and water resistance.
Main power: 4mm² copper cable.
Control power: 1.5mm² copper cable.
Speed regulation: Controlled via timed start/stop cycles on the last tower.
Safety switches: Heavy-duty micro-switches and contactors ensure alignment and system protection.
Over-watering timer stops the system if movement fails.
Run light indicator at last tower for visual operation check.
Low-pressure shutdown and automatic pressure start for water protection.
End-of-field stop with auto-reverse option for obstacle safety.
AP protection automatically stops the pump if the system fails to move.
Hot-dip galvanized steel in compliance with SABS 763:1977 standards.
Grade 8.8 electro-galvanized bolts and nuts with locknuts for every truss assembly.
Activate/deactivate end gun directly from the collector ring at the pivot point.
Optional auto-stop settings for precise irrigation control.
Senter 360 irrigation pivot wheels are specially engineered to leave fewer wheel tracks than standard tractor tyres, preventing deep ruts and soil damage in wet fields. Built for harsh South African conditions, these heavy-duty pivot tyres withstand sun, heat, and rugged terrain, so durable that we've never had to replace a wheel on any Senter 360 pivot system
Standard: 13.6x24 tyre on 12x24 galvanized rim.
Four-wheeler option: For 152mm and 165mm spans (up to seven spans)
Standard speed: 0.56kW; 40:1; 35 RPM.
High-speed option: 1.1kW; 30:1; 48 RPM for faster irrigation cycles.

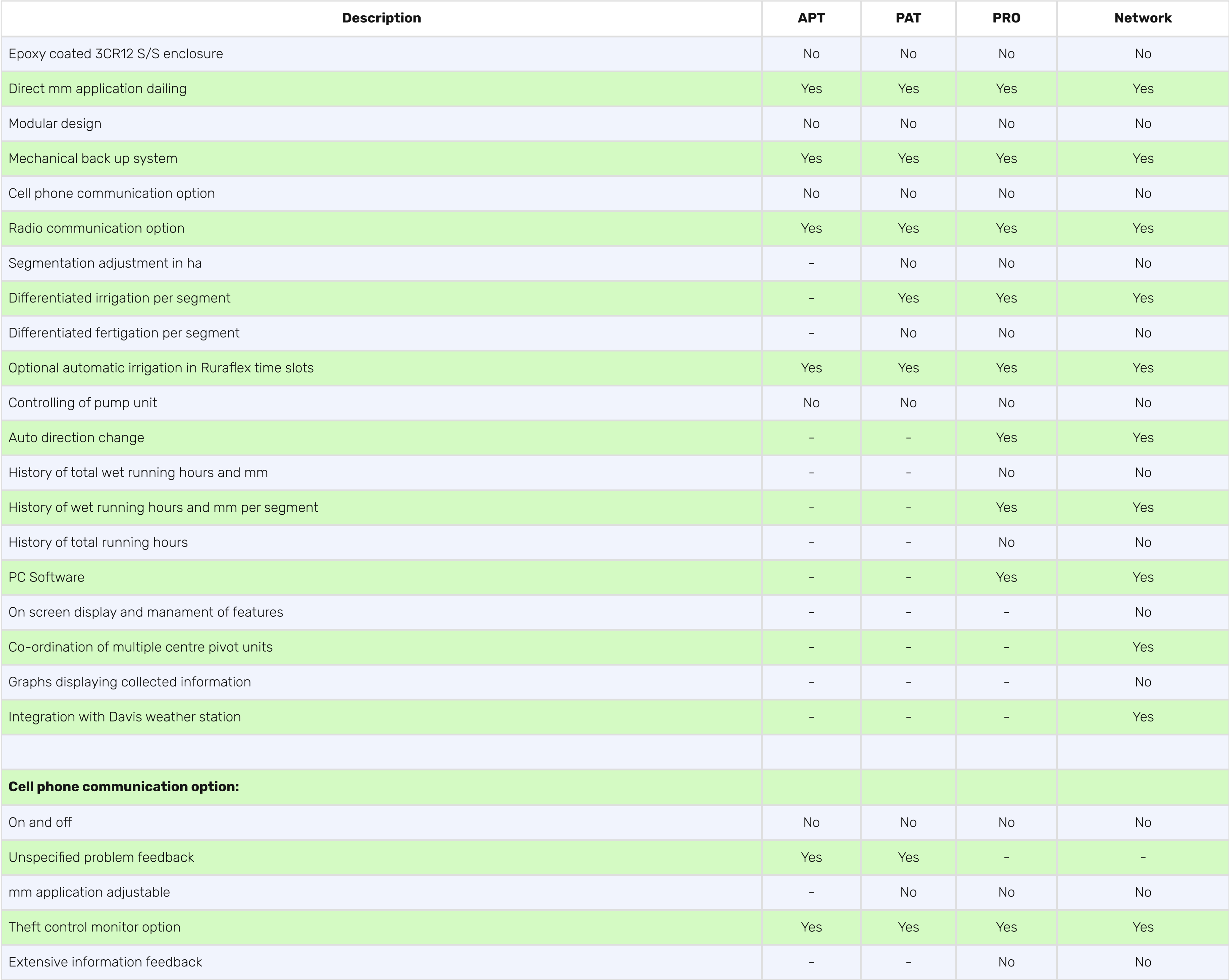

APT Panel: Reliable manual control.
PAT Part Circle Panel: Ideal for smaller or irregular fields.
PRO Networking Panel: Advanced automation with radio or cellphone communication options.
